100PCS Solder Sleeve Heat Shrink Butt Waterproof AWG 10-26 Wire Splice Connector

00PCS Solder Sleeve Heat Shrink Butt Waterproof AWG Wire Splice Connector

100% brand new and high-quality made.

These High-quality heat shrink butt splice connectors for wire connection that provides excellent waterproof sealing and protection from mechanical damage combined with Anti-Corrosion effect.

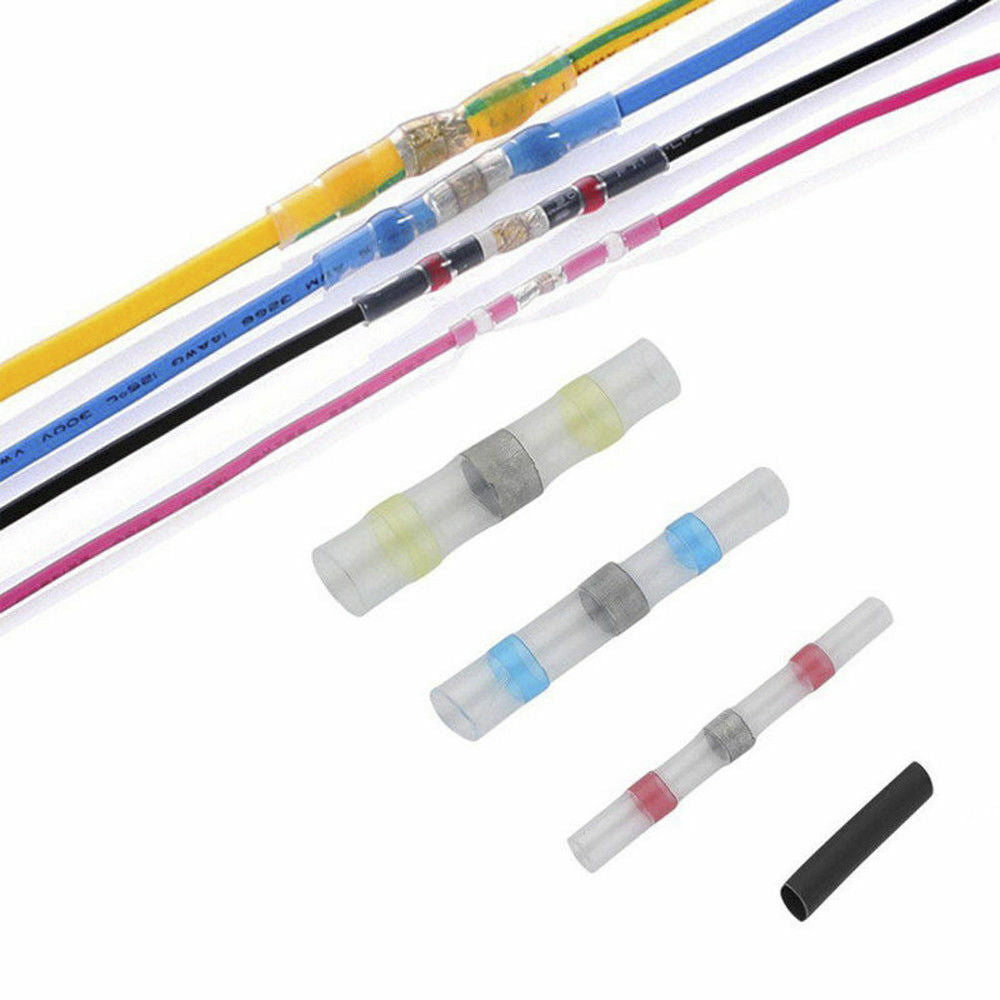

Just heat these solder seal wire connectors and they will easily connect both sides of the wires and seal them up to make a reliable waterproof connection.

The outer layer of connector tube is made from polymer that shrinks under the heat and two glue compound circles on both sides of a tube, which will seal the connection and will make it waterproof.

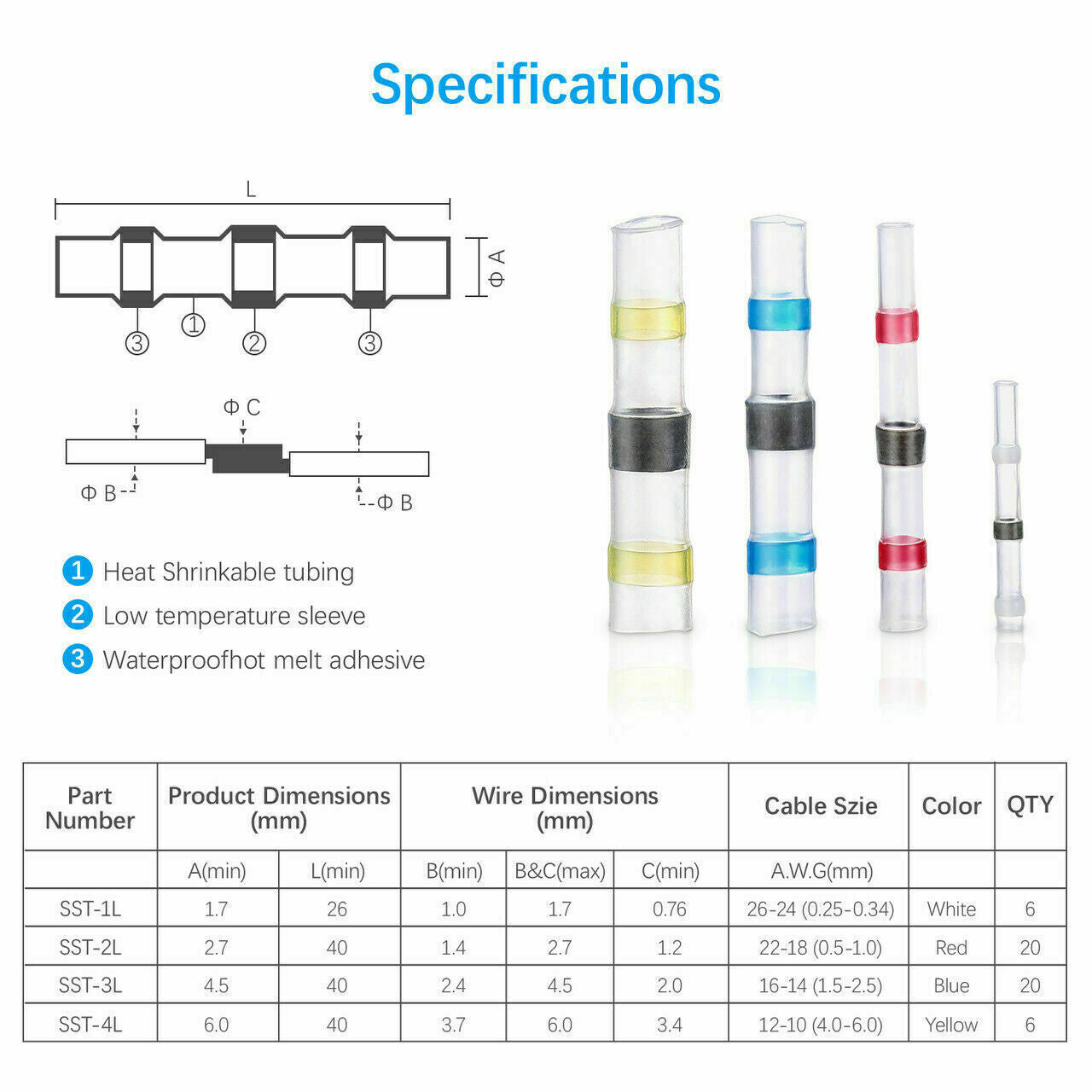

Specification:

Shrink ratio 2:1

Minimum recommended shrink temperature: 80°C / 176°F

Minimum recommended solder melting temperature: 138°C / 280.4°F

For best results we recommend the use a heat gun!

No wire damage due to low shrink temperature

Best shrink temperatures: 125°C - 130°C / 257°F - 266°F

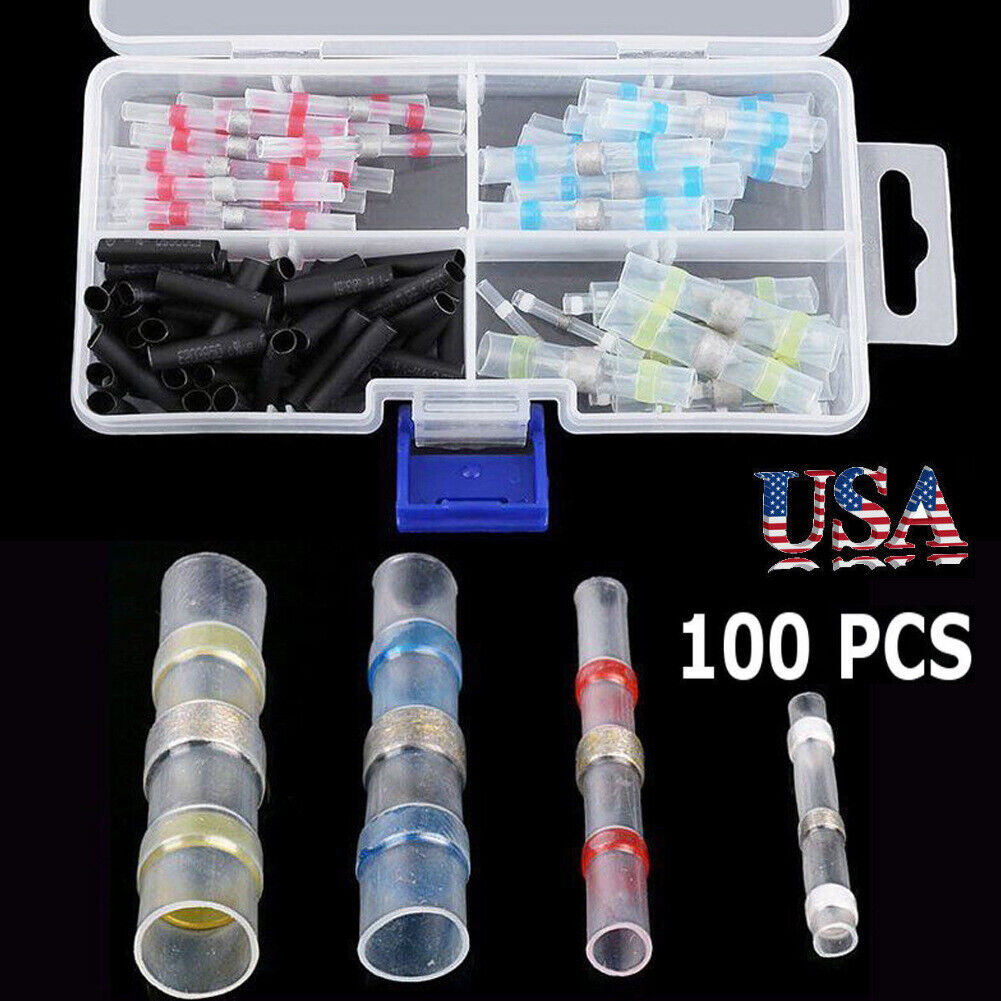

Package Includes:

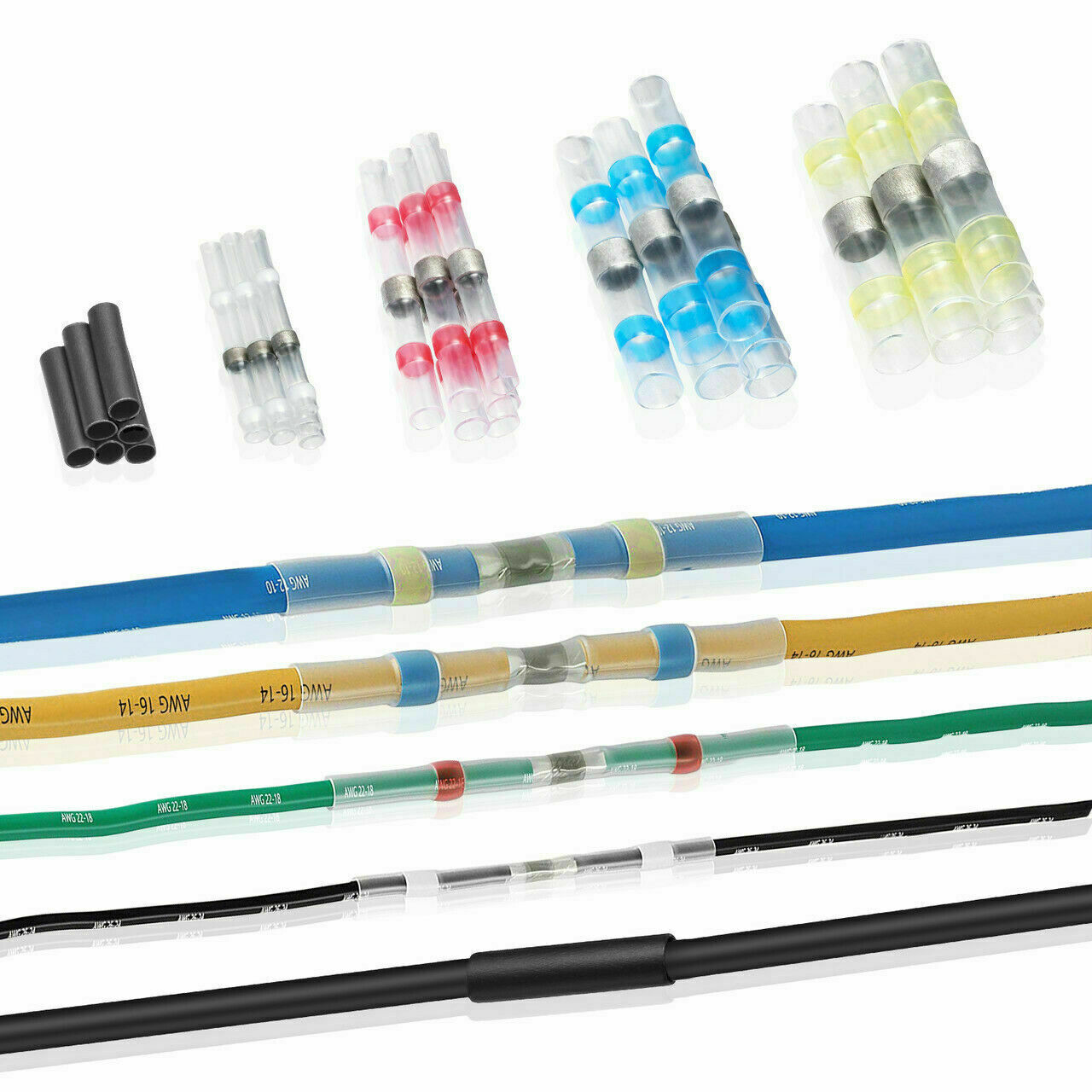

20x red: diameter 3mm, for cable cross section 0.5-1.0 mm² (AWG 22-18)

20x blue: diameter 5mm, for cable cross section 1.0-2.5 mm² (AWG 16-14)

5x yellow: diameter 6mm, for cable cross-section 4.0-6.0 mm² (AWG 12-10)

5x white: diameter 1.5mm, for cable cross section 0.25 - 0.35mm² (AWG 26-24)

50 x Black Connectors: 3.2 / 1.6 (20mm long)
